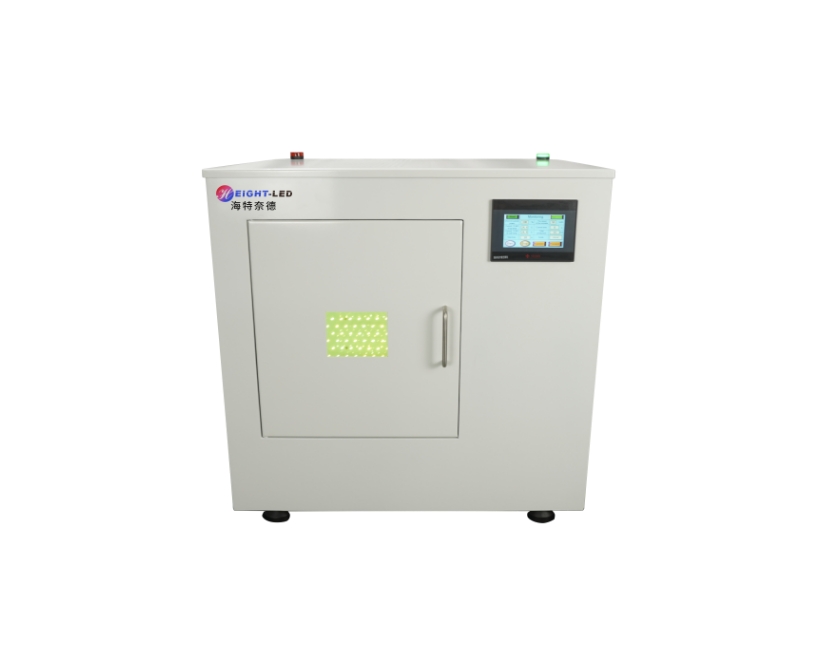

1：Characteristics of Equipment

l With 250mm diameter rotating plate, support milt-side curing.

l It has a smart safety door protection function, and the UV LED lamp will be turned off immediately when the door is opened in any mode.

l It provides automatic and manual modes. Under automatic mode, it will work according to the irradiation time you set, and the UV LED lamp will automatically turn off after the countdown is completed; under manual mode, it needs to manually turn on the UV LED lamp and record the curing time in real time.

l It has functions such as digital dimming, production counting, and historical data query.

2：Characteristics of LED Light Source

l High efficiency and energy saving

The output wavelength of UV LED lamp is concentrated, the photoelectric conversion rate is high, energy saving and electricity saving, fast curing speed, and high production efficiency.

l Wide scope of application

UV LED is a cold light source, low infrared heat radiation, will not cause working thermal stress and deformation, suitable for curing all kinds of heat-sensitive materials.

l Long working life

UV LED has a long service life, which reduces the investment cost of equipment. It is on and off without preheating, and the number of switching does not affect its life.

l Environmental protection

RoHS certified, no mercury.
